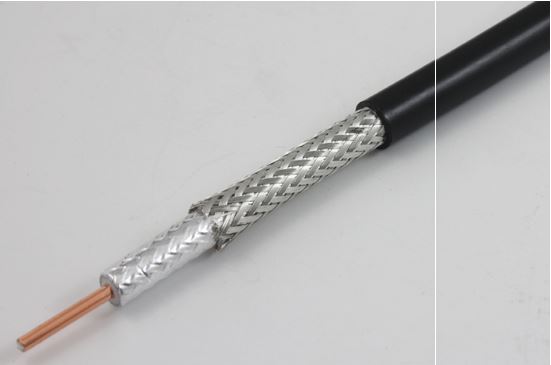

LMR SERIES COAXIAL CABLE (GT-LMR600)

Item

Material

Diameter

Inner Conductor

Copper Clad Aluminum

4.47 mm

Insulator

Physical Foam Polyethylene

11.56 mm

Outer Conductor

Aluminum Foil + Tinned Copper Braid

12.45 mm

Jacket

Low Smoke Halogen Free Fire Retardant PE

14.99 mm

Item

Specification

Item

Specification

Capacitance

76.0 pF/m

Min. Bend

200 mm

Impedance

50 Ω

Storage Temp.

-70℃- +85℃

Velocity

87 %

Installation Temp.

-40℃- +85℃

Inner Conductor DC Resistance

1.74 Ω/km

Operating Temp.

-40℃- +85℃

Outer Conductor DC Resistance

5.75 Ω/km

 VSWR

≤1.05 (800-1000MHz)

Shielding Effectiveness

>90 dB

　

 ≤1.12 (1700-2400MHz)

Frequency (MHz)

Attenuation (dB/100m)

Avg. Power (KW)

30

1.60

5.51

50

1.97

4.24

150

3.20

2.41

220

3.80

1.97

450

5.60

1.35

900

8.20

0.93

1500

10.80

0.70

1800

12.10

0.63

2000

12.80

0.59

2400

14.44

0.53

2500

14.80

0.52

3000

16.40

0.49

4000

19.36

0.45

4500

21.00

0.42

5000

22.31

0.39

5200

22.97

0.37

5500

23.62

0.35

5800

24.28

0.32

6000

24.93

0.32
