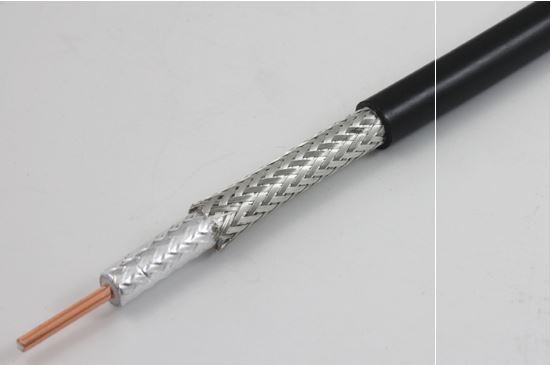

/clip_image003.png) GT-LMR240-FLEX COAXIAL CABLE
|
|
Structure Dimension & Performance
|
|
Item
|
Material
|
Diameter
|
|
Inner Conductor
|
Tinned Standard Copper
|
1.42 mm
|
|
Insulator
|
Physical Foam Polyethylene
|
3.81 mm
|
|
Outer Conductor
|
Aluminum Foil + Tinned Copper Braid
|
4.52 mm
|
|
Jacket
|
Black Polyethylene (PE)
|
6.10 mm
|
|
|
Electrical Characteristics Mechanical and Environmental Characteristics
|
|
Item
|
Specification
|
Item
|
Specification
|
|
Capacitance
|
79.4 pF/m
|
Min. Bend
|
100 mm
|
|
Impedance
|
50 Ω
|
Storage Temp.
|
-40℃- +80℃
|
|
Velocity
|
84 %
|
Installation Temp.
|
-40℃- +80℃
|
|
Inner Conductor DC Resistance
|
10.50 Ω/km
|
Operating Temp.
|
-40℃- +80℃
|
|
Outer Conductor DC Resistance
|
12.76 Ω/km
|
VSWR
|
≤1.10 (800-1000MHz)
|
|
Shielding Effectiveness
|
>90 dB
|
　
|
≤1.15 (1700-2400MHz)
|
|
|
Attenuation and Avg. Power(20℃)
|
|
Frequency (MHz)
|
Attenuation (dB/100m)
|
Avg. Power (KW)
|
|
30
|
4.40
|
1.30
|
|
50
|
5.70
|
1.00
|
|
150
|
9.90
|
0.58
|
|
220
|
12.00
|
0.58
|
|
450
|
17.30
|
0.33
|
|
900
|
24.80
|
0.23
|
|
1500
|
32.40
|
0.18
|
|
1800
|
35.60
|
0.16
|
|
2000
|
37.70
|
0.15
|
|
2500
|
42.40
|
0.13
|
|
3000
|
46.50
|
0.12
|
|
5800
|
66.80
|
0.09
|
|
|
